Configuring Static Route and OSPF on a Palo Alto Networks Firewall

Routing Configuration

PAN-OS software supports static routes, BGP, OSPF, RIP, and Multicast routing configured in the virtual router (VR). There are limitations for the number of entries in the forwarding and routing tables. Different platform levels also can support varying numbers of VRs. The VR configuration is meant to match the existing routing and routed infrastructure. In addition to protocol configuration, redistribution profiles can support protocol interoperability.

A discussion of virtual routers and each of the supported dynamic routing protocol is found on this link.

To configure a static default route in order for TRUST zone users (and servers) to reach the UNTRUST zone or the Internet, go to Network > Virtual Routers.

Since ethernet1/1 interface is set to DHCP client, it will automatically receive a default route from the ISP. To check the static route assigned by the ISP, go to Network > Virtual Routers > More Runtime Stats (for LAB-VR).Notice the Destination route 0.0.0.0/0 to ISP as the next hop is automatically created. The Flags A S means Active-Static.

To manually add a static route on a PAN firewall, go to Network > Virtual Routers > click on the custom Virtual Router name (LAB-VR) > Static Routes > click Add.



Type the name of the static route, Destination (0.0.0.0/0), Interface (exit interface ethernet1/1 in this case) and Next Hop IP Address (ISP hop/gateway address).



Below are the OSPF areas used on my Palo Alto firewall lab:

1) Backbone Area 0 - which is the link between the PAN firewall and SW1

2) Area 101- which is the User Network

3) Area 201 - which is the Server Network

SW1 will dynamically advertise the User and Server networks to the PAN firewall. Likewise, the PAN firewall will need to advertise its default route to OSPF Area 101 and 201 networks. Below are the configurations done on SW1.

SW1#show run interface fastethernet0/12
Building configuration...

Current configuration : 128 bytes
!
interface FastEthernet0/12    // L3 LINK TO PAN FIREWALL
 no switchport
 ip address 172.17.99.2 255.255.255.248
 no ip route-cache
 no ip mroute-cache
end

SW1#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
SW1(config)#vlan 101     // CREATE LAYER 2 VLAN
SW1(config-vlan)#name USER
SW1(config-vlan)#vlan 201
SW1(config-vlan)#name SERVER
Enter configuration commands, one per line.  End with CNTL/Z.
SW1(config)#interface vlan 101      // CREATE LAYER 3/SVI INTERFACE
SW1(config-if)#
*Mar  1 03:39:20.668: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan101, changed state to down
SW1(config-if)#ip address 172.17.101.1 255.255.255.0
SW1(config-if)#
SW1(config-if)#interface vlan 201   // no autostate IS NOT SUPPORTED ON MY 3560 SWITCH
SW1(config-if)#
*Mar  1 03:39:52.327: %LINEPROTO-5-UPDOWN: Line protocol on Interface Vlan201, changed state to down
SW1(config-if)#ip address 172.17.201.1 255.255.255.0
SW1(config)#interface fastethernet0/22
SW1(config-if)#switchport host    // AUTO CONFIGURE PORTFAST AND ACCESS VLAN
switchport mode will be set to access
spanning-tree portfast will be enabled
channel group will be disabled

SW1(config-if)#switchport access vlan 101    // NEED A HOST CONNECTED ON VLAN 101 AND 201 FOR OSPF ROUTES TO BE ADVERTISED TO PAN FIREWALL
SW1(config-if)#interface fastethernet0/23
SW1(config-if)#description ### SERVER - 172.17.201.101 ###
SW1(config-if)#switchport host
switchport mode will be set to access
spanning-tree portfast will be enabled
channel group will be disabled

SW1(config-if)#switchport access vlan 201
SW1(config-if)#end
SW1#
*Mar  1 03:40:24.136: %SYS-5-CONFIG_I: Configured from console by console

SW1#show run interface vlan 101
Building configuration...

Current configuration : 64 bytes
!
interface Vlan101
 ip address 172.17.101.1 255.255.255.0
end

SW1#show run interface vlan 201
Building configuration...

Current configuration : 64 bytes
!
interface Vlan201
 ip address 172.17.201.1 255.255.255.0
end

SW1#configure terminal
Enter configuration commands, one per line.  End with CNTL/Z.
SW1(config)#router ospf ?
  <1-65535>  Process ID

SW1(config)#router ospf 1
IP routing not enabled
SW1(config)#ip routing
SW1(config)#router ospf 1
SW1(config-router)#?
Router configuration commands:
  area                   OSPF area parameters
  auto-cost              Calculate OSPF interface cost according to bandwidth
  bfd                    BFD configuration commands
  capability             Enable specific OSPF feature
  compatible             OSPF compatibility list
  default                Set a command to its defaults
  default-information    Control distribution of default information
  default-metric         Set metric of redistributed routes
  discard-route          Enable or disable discard-route installation
  distance               Define an administrative distance
  distribute-list        Filter networks in routing updates
  domain-id              OSPF domain-id
  domain-tag             OSPF domain-tag
  exit                   Exit from routing protocol configuration mode
  help                   Description of the interactive help system
  ignore                 Do not complain about specific event
  ispf                   Enable incremental SPF computation
  limit                  Limit a specific OSPF feature
  log-adjacency-changes  Log changes in adjacency state
  max-lsa                maximum number of LSAs OSPF process will receive
  max-metric             Set maximum metric
  maximum-paths          Forward packets over multiple paths
  neighbor               Specify a neighbor router
  network                Enable routing on an IP network
  no                     Negate a command or set its defaults
  nsf                    Non-stop forwarding
  passive-interface      Suppress routing updates on an interface
  process-min-time       Percentage of quantum to be used before releasing CPU
  queue-depth            OSPF Hello/Router process queue depth
  redistribute           Redistribute information from another routing protocol
  router-id              router-id for this OSPF process
  summary-address        Configure IP address summaries
  timers                 Adjust routing timers
  traffic-share          How to compute traffic share over alternate paths

SW1(config-router)#network 172.17.99.0 ?
  A.B.C.D  OSPF wild card bits

SW1(config-router)#network 172.17.99.0 0.0.0.7 ?
  area  Set the OSPF area ID

SW1(config-router)#network 172.17.99.0 0.0.0.7 area 0
SW1(config-router)#network 172.17.101.0 0.0.0.255 area 101
SW1(config-router)#network 172.17.201.0 0.0.0.255 area 201
SW1(config-router)#passive-interface default     // DISABLE OSPF ADJACENCY ON ALL LAYER 3 INTERFACE
SW1(config-router)#no passive-interface fastethernet0/12    // ENABLE OSPF ON F0/12 (UPLINK TO PAN FIREWALL)
SW1(config-router)#end
SW1#
*Mar  1 03:46:12.758: %SYS-5-CONFIG_I: Configured from console by console
SW1#show ip ospf neighbor    // NO OSPF ADJACENCY FORMED YET SINCE NO OSPF CONFIGURED ON PAN FIREWALL

To configure OSPF on a PAN firewall, go to Network > Virtual Routers > click on the custom Virtual Router (LAB-VR in this case) > OSPF.

Tick Enable (to enable OSPF routing on the PAN firewall) > type the Router ID (this IP will be used by the router to uniquely identify itself in OSPF domain) 172.17.99.1 (no subnet mask needed) > click Add under Area tab.



Type the Area ID in dotted decimal (like an IPv4 address) 0.0.0.0 > leave the default Type (Area Type) as Normal.



Go to Range tab > click Add > type the network/nm that will participate in OSPF routing > choose Advertise under Action drop-down menu.

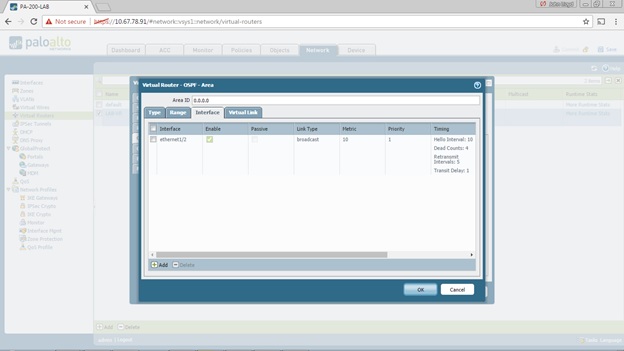

Go to Interface tab > click Add > choose the interface that will participate in OSPF Area 0 (ethernet1/2 TRUST-L3 interface in this case) > leave the default Link Type as Broadcast and other OSPF timers and other metric > click OK > OK > then click Commit to apply the changes.



The OSPF adjacency was established on SW1 after configuring OSPF and hit Commit on the PAN firewall.

*Mar  1 04:06:05.803: %OSPF-5-ADJCHG: Process 1, Nbr 172.17.99.1 on FastEthernet0/12 from LOADING to FULL, Loading Done

SW1#show ip ospf neighbor

Neighbor ID     Pri   State           Dead Time   Address         Interface
172.17.99.1       1   FULL/BDR        00:00:38    172.17.99.1     FastEthernet0/12

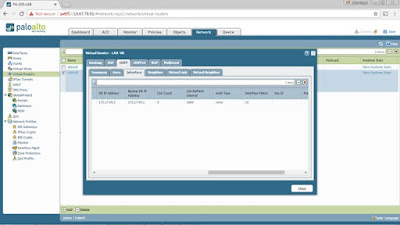

Click More Runtime Stats under LAB-VR to check the routing table. Notice the Flags has O which means OSPF route. Issue a show routing route command on the PAN firewall CLI to view the routing table.



The PAN firewall became an ASBR since it has default route to Internet.



SW1#show ip ospf interface fastethernet0/12
FastEthernet0/12 is up, line protocol is up (connected)
  Internet Address 172.17.99.2/29, Area 0
  Process ID 1, Router ID 172.17.201.1, Network Type BROADCAST, Cost: 1
  Transmit Delay is 1 sec, State DR, Priority 1      // SW1 IS THE DR IN OSPF AREA 0
  Designated Router (ID) 172.17.201.1, Interface address 172.17.99.2
  Backup Designated router (ID) 172.17.99.1, Interface address 172.17.99.1
  Timer intervals configured, Hello 10, Dead 40, Wait 40, Retransmit 5
    oob-resync timeout 40
    Hello due in 00:00:05
  Supports Link-local Signaling (LLS)
  Cisco NSF helper support enabled
  IETF NSF helper support enabled
  Index 1/1, flood queue length 0
  Next 0x0(0)/0x0(0)
  Last flood scan length is 0, maximum is 1
  Last flood scan time is 0 msec, maximum is 0 msec
  Neighbor Count is 1, Adjacent neighbor count is 1
    Adjacent with neighbor 172.17.99.1  (Backup Designated Router)
  Suppress hello for 0 neighbor(s)


The PAN firewall became the BDR (in OSPF election) since it has a lower Router ID compared to SW1 which has the highest IP address 172.17.201.1 (SVI 201). Scroll further to the right to check the DR IP address.

SW1#show ip route    // SW1 HAS NO OSPF ROUTE FROM PAN FIREWALL
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route

Gateway of last resort is not set

     172.17.0.0/16 is variably subnetted, 3 subnets, 2 masks
C       172.17.201.0/24 is directly connected, Vlan201
C       172.17.101.0/24 is directly connected, Vlan101
C       172.17.99.0/29 is directly connected, FastEthernet0/12

SW1 still doesn’t receive any OSPF route from the PAN firewall. To advertise OSPF routes, go to Network > Virtual Routers > click LAB-VR > Redistribution Profiles > click Add.



Type the Redistribution Profile name, type a number for the Priority (1 in this case) > click Redist under Redistribute > tick Static under General Filter tab > Source Type > under Destination column click Add > type the static default route 0.0.0.0/0 > click OK.



Bind the Redistribution Profile by going to OSPF > Export Rules tab > tick Allow Redistribute Default Route > click Add.



Choose the created Redistribution Profile (RP-STATIC in this case) and leave the New Path Type to Ext 2 (External Type 2 route) > click OK > then Commit.



*Mar  1 04:54:56.397: %OSPF-5-ADJCHG: Process 1, Nbr 172.17.99.1 on FastEthernet0/12 from LOADING to FULL, Loading Done    // OSPF ADJACENCY BOUNCED AFTER REDISTRIBUTION PROFILE WAS APPLIED AND HIT COMMIT

SW1#show ip route
Codes: C - connected, S - static, R - RIP, M - mobile, B - BGP
       D - EIGRP, EX - EIGRP external, O - OSPF, IA - OSPF inter area
       N1 - OSPF NSSA external type 1, N2 - OSPF NSSA external type 2
       E1 - OSPF external type 1, E2 - OSPF external type 2
       i - IS-IS, su - IS-IS summary, L1 - IS-IS level-1, L2 - IS-IS level-2
       ia - IS-IS inter area, * - candidate default, U - per-user static route
       o - ODR, P - periodic downloaded static route

Gateway of last resort is not set

     172.17.0.0/16 is variably subnetted, 3 subnets, 2 masks
C       172.17.201.0/24 is directly connected, Vlan201
C       172.17.101.0/24 is directly connected, Vlan101
C       172.17.99.0/29 is directly connected, FastEthernet0/12
O*E2 0.0.0.0/0 [110/1] via 172.17.99.1, 00:00:00, FastEthernet0/12   // OSPF EXTERNAL TYPE 2 RECEIVED FROM PAN FIREWALL
